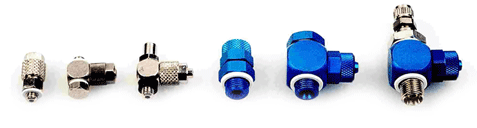

Pneumatic Connection Fittings
Compressed air connections:
Straight or rotating screw connection, also with non-return valve.

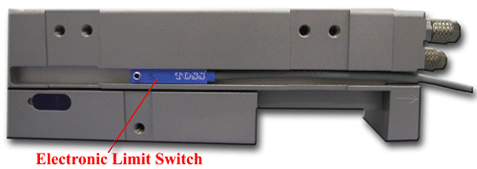

Electronic Limit Switch
The electrical limit switch is used on modules with integrated standard profile groove or attached rails. It can be mounted on both sides and is provided with a yellow LED and a suppressor circuit.
Inductive Limit Switch
For our pneumatic cylinders special limit switches are available. They are of compact design, they are mounted on the left or right side of the modules and can be quickly exchanged.
For the strokes 10/25/50/80 and 100 mm two switches are integrated in one housing. For strokes that are larger than 125 mm separate switches are available.
